OEM Heavy Engineering • Coimbatore Facility (Est. 2004) 750 T/Yr Captive Foundry Active

High-Temperature Thermal Oil & Chemical Process Pumps

Flowline Pumps and Engineering designs, casts, and precision-manufactures heavy-duty horizontal centrifugal process pumps. Operating our own ISO 9001:2015 & PED 2014/68/EU-certified 750 T/Yr captive alloy foundry in Coimbatore, we deliver absolute metallurgical integrity and pump reliability up to 400°C.

Request Engineering Quote Explore Captive Foundry National Expos 2026
2004 Established OEM
750 T/Yr Captive Steel Foundry
400°C Thermal Oil Max Rating
ISO 2858 / 5199 Dimensional Standard

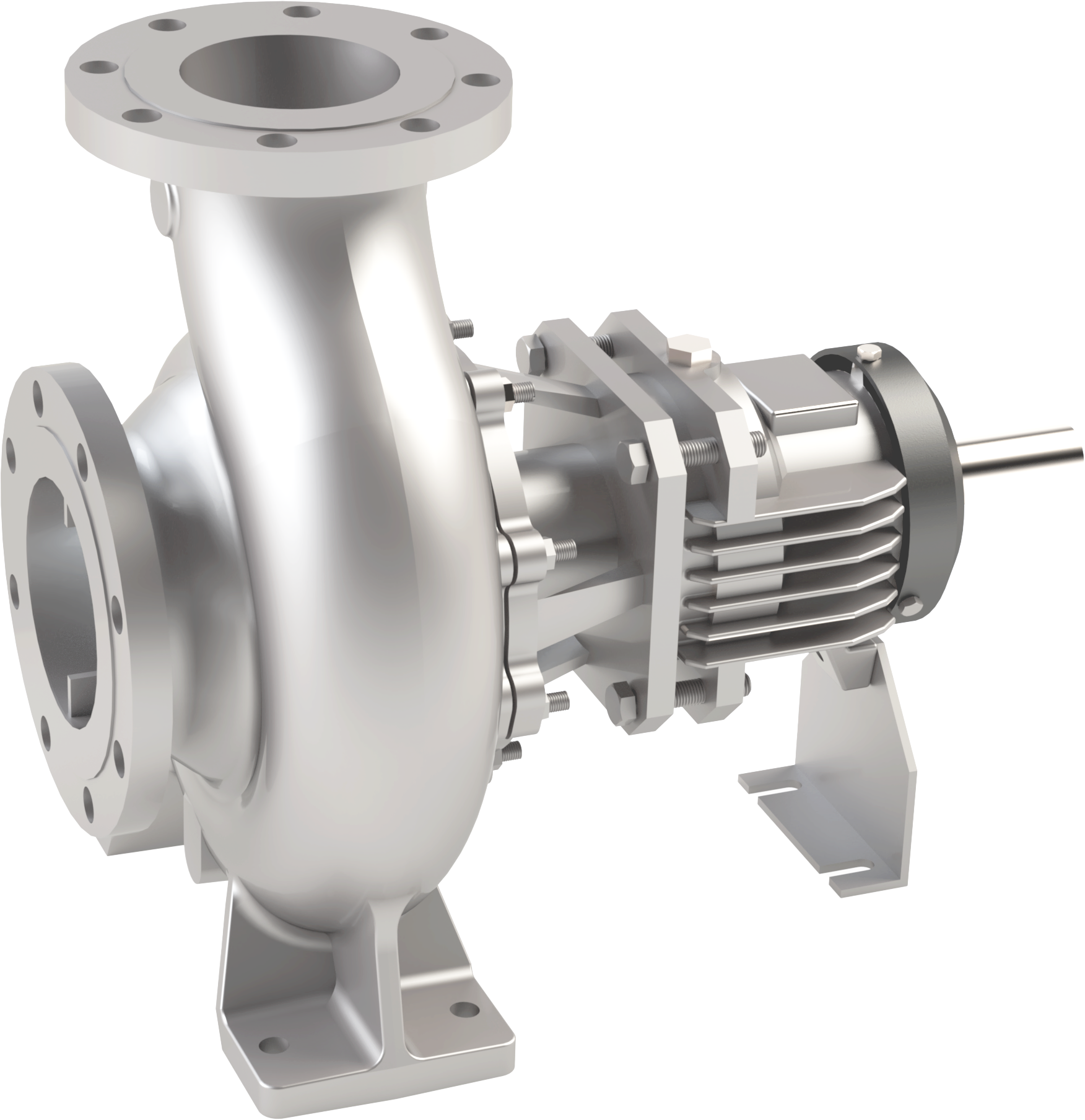

Flowline FTX Series Air Cooled Thermal Oil Circulation Pump
Air-Cooled Chamber (Zero Water Required)
ISO 2858 Compliant Flanges
FTX Series • Air-Cooled Mechanical Seal Chamber • Up to 350°C
• CAPTIVE 750 TONS/YEAR STEEL FOUNDRY IN COIMBATORE • 250 KW INDUCTION MELTING FURNACES • OPTICAL EMISSION 32-ELEMENT SPECTROMETER WITH NITROGEN ANALYSIS • 1-TON ELECTRIC HEAT TREATMENT CALIBRATED TO API 6A & NORSOK M650 • 100% HYDROSTATIC PRESSURE TESTING AT 1.5X RATED WORKING PRESSURE • ZERO WATER COOLING AUXILIARY REQUIRED FOR FTX THERMAL PUMPS • CAPTIVE 750 TONS/YEAR STEEL FOUNDRY IN COIMBATORE • 250 KW INDUCTION MELTING FURNACES • OPTICAL EMISSION 32-ELEMENT SPECTROMETER WITH NITROGEN ANALYSIS
Heavy-Duty Process Catalog

Engineered Centrifugal Pumps & Operating Envelopes

Manufactured to international ISO dimensions with interchangeable back pull-out geometry.

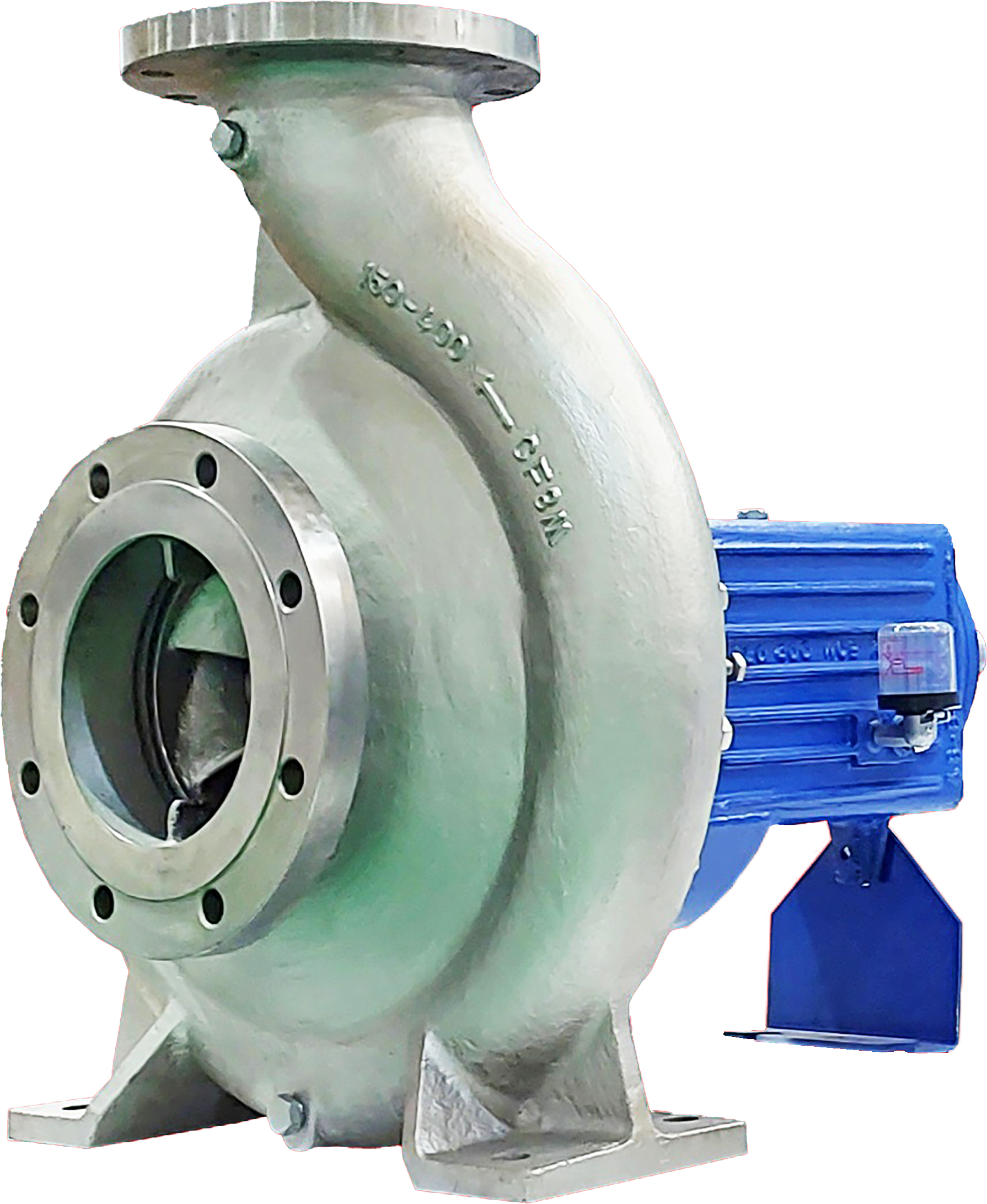

FCX Chemical Process Pump ASTM A743 CF8M Coimbatore Direct Factory Dispatch
ISO 2858 & ISO 5199 Specifications

FCX Chemical Process Pumps

Single-stage overhung horizontal end-suction centrifugal pump with vertical centerline discharge. Engineered for corrosive acids, aggressive chemical solvents, and toxic fluids.

Flow Rate (Q)Up to 1200 m³/hr
Total Dynamic Head (H)Up to 225 Meters
Operating Temperature-40°C to +250°C
Working PressureUp to 25 Bar
Standard ComplianceISO 2858, ISO 5199, ANSI 16.5
Full Specifications & Datasheet →

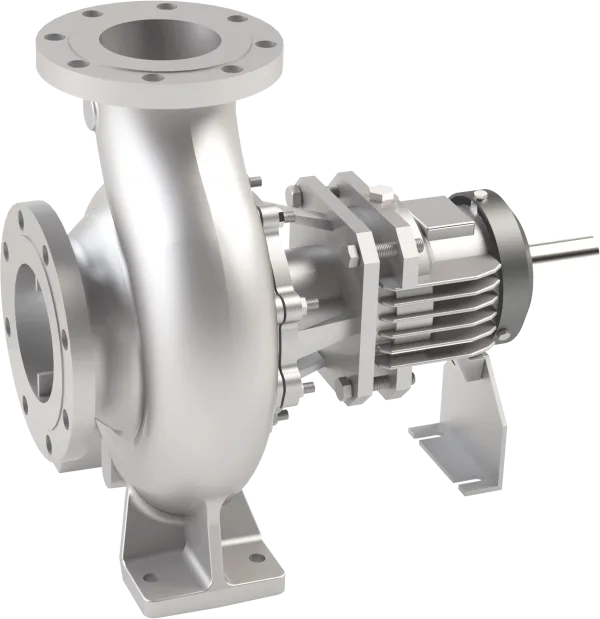

FTX Air-Cooled High-Temperature Thermal Oil Pump Top Thermal Seller
No External Cooling Required

FTX Thermal Oil Pumps

Engineered specifically for hot synthetic heat transfer fluids up to 350°C. Air-cooled mechanical seal chamber eliminates costly auxiliary cooling water connections and cooling towers.

Discharge Delivery Size25 mm to 250 mm
Capacity (Q)Up to 1000 m³/hr
Total Head (H)Up to 120 Meters
Operating TemperatureUp to 350°C (662°F)
Working PressureUp to 16 Bar
Full Specifications & Datasheet →

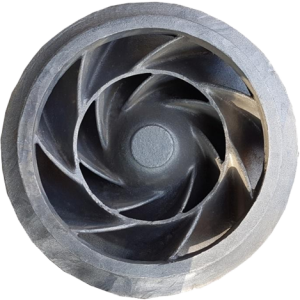

Precision Multi-Vane Closed Impeller Casting Coimbatore Foundry Custom Foundry Metallurgy
Centerline-Mount & Exotic Alloys

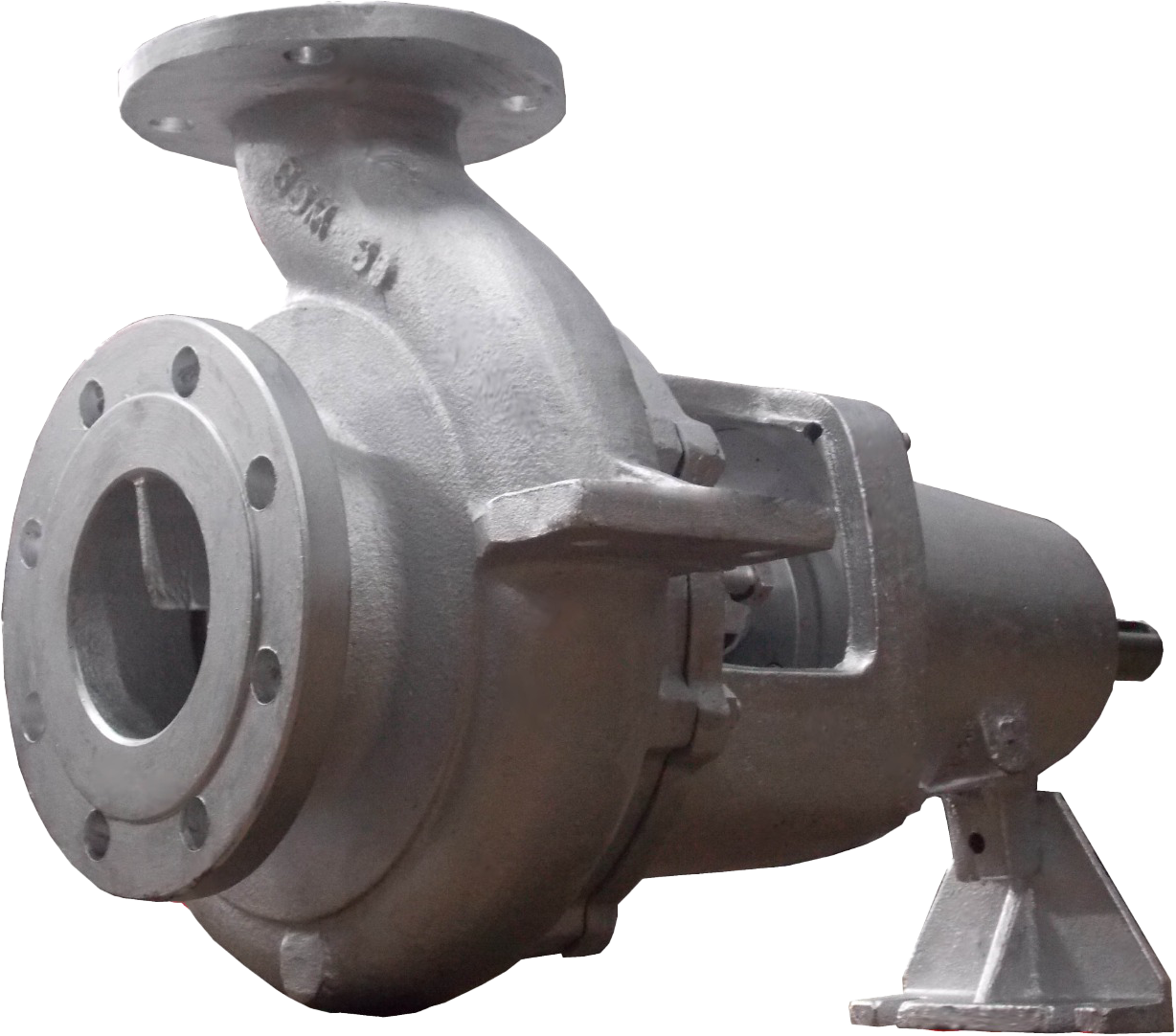

FXT High-Temp & Exotic Spares

Centerline-mounted volute casing absorbs bi-directional thermal expansion up to 400°C without shaft misalignment. In-house 3D laser reverse engineering for obsolete imported spares.

Operating TemperatureUp to 400°C (752°F)
Capacity & Head450 m³/hr | 120 Meters Head
3D Reverse EngineeringLaser Optical Scanning to CAD
Metallurgy OptionsHastelloy, Titanium, Duplex 4A/5A
Bearing BracketHeavy-duty oil-lubricated brackets
Foundry & Reverse Engineering →
Coimbatore Foundry Metallurgy

Materials of Construction (MOC) Selection Guide

All alloys poured directly in our captive Coimbatore foundry under strict optical emission spectrometry:

Alloy Classification ASTM Standard Grade Recommended Process Media & Environment
Carbon Steel / WCB ASTM A216 Gr. WCB High-temperature synthetic thermal oils, boiler circulation, non-corrosive hydrocarbons.
Austenitic Stainless Steel ASTM A743 Gr. CF8, CF8M, CF3M Organic acids, food processing, nitric acid, general industrial chemicals, and demineralized water.
Duplex & Super Duplex ASTM A890 / A995 Gr. 1B, 3A, 4A, 5A, 6A High-chloride environments, seawater desalination, wet phosphoric acid, petrochemical refining.
High Nickel Alloys ASTM A494 CW12MW (Hastelloy C-276), CW6M, CZ 100 Severe oxidizing media, hydrochloric acid, hot sulfuric acid, chlorine dioxide bleaching.
Super Austenitic / High Alloy Alloy 20 (CN7M), SMO 254, Sanicro 28 Sulfuric acid concentrations up to 96%, flue gas desulfurization, fertilizer manufacturing.
Reactive Metals ASTM B 367 – Titanium Gr. C2 / C3 High-purity chemical processing, wet chlorine, marine brine extraction loops.
Vertical Manufacturing Integration

Why Flowline Outperforms Trading Resellers: Our Captive Foundry

Unlike trading entities who purchase generic pumps from third-party shops, Flowline Pumps operates a dedicated 750 T/Yr captive steel casting foundry in Coimbatore (commissioned 2018). Certified under ISO 9001:2015 and European Pressure Equipment Directive (PED 2014/68/EU), our metallurgical engineers control chemical composition, grain boundaries, and wall thickness from raw charge to final assembly.

  • Optical Spectroscopy: 32-Element Spectrometer with direct Nitrogen analysis to ensure exact phase balance in Duplex steels.
  • Calibrated Heat Treatment: 1-Ton electric furnace with water quenching, verified to API 6A Annex M, ASTM A991, and NORSOK M650.
  • Non-Destructive Testing: Certified in-house NDT Level II inspectors conducting Radiography (RT), Ultrasonic (UT), and Dye Penetrant (DPT).
  • 100% Hydrostatic Pressure Testing: Every pump casing hydro-tested to 1.5x design pressure before dispatch.
Explore Full Foundry Testing Lab
250 kW Induction Melting Furnace
40-Ton Computerized UTM Lab
100% Hydro Tested Casings
PED Certified Foundry
Application Landscapes

Engineered for Demanding Process Industries Across India

Proven installations running round-the-clock across continuous manufacturing environments.

Chemical & Fertilizers

Transfer of sulfuric, phosphoric, and nitric acids, corrosive salts, and gas scrubber circulation systems with zero gland leakage.

Sugar & Distilleries

Heavy juice extraction, spent wash recirculation, multi-effect evaporator feed, and viscous high-temperature syrup handling.

Paper & Pulp

Black liquor evaporation loops, chlorine dioxide bleaching stages, caustic recovery cycles, and high-density fibrous stock transfer.

Textile & Synthetic Fibers

Thermal oil circulation up to 350°C for stenter heating, polymerization reactors, pressurized dye bath fluid loops, and acidic effluent treatment.
